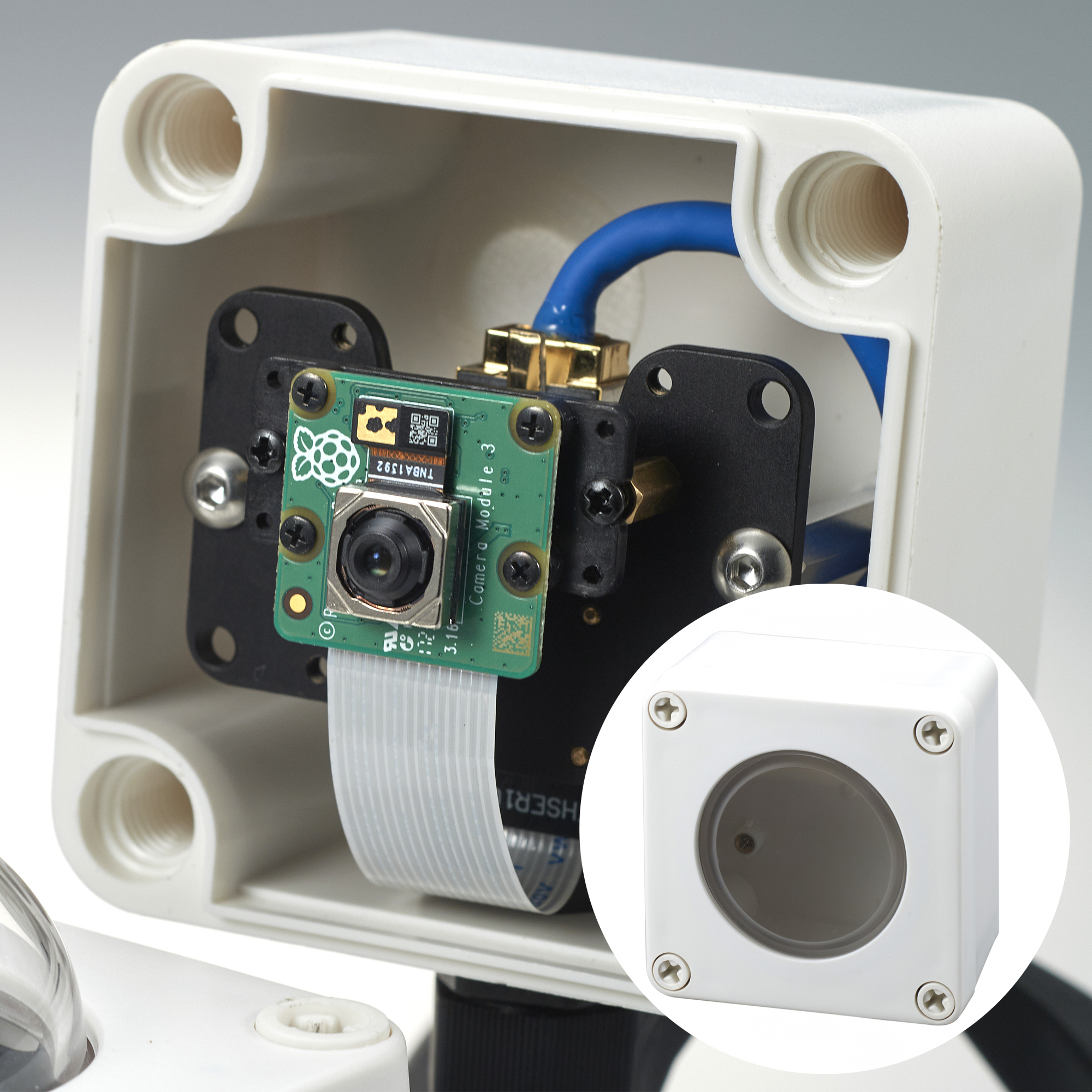

[Raspberry Pi] IP67 Waterproof Camera Housing Set (for V2, V3, and AI Cameras)

This waterproof housing set is compatible with the official Raspberry Pi camera modules (V2, V3, and AI Camera) and is ideal for outdoor use.
With its IP67-rated high-level waterproof and dustproof performance, it ensures reliable operation even in harsh environments exposed to rain, wind, or heavy dust.

[Cable Length and Connection Method]
Normally, Raspberry Pi cameras are connected using a CSI cable, but the maximum length is only about 50 cm, which is inconvenient for outdoor installations.
Therefore, this set uses conversion modules to extend the connection distance by converting from CSI to HDMI or Ethernet.

Cable length: 1 m (using CSI-to-HDMI conversion module) — HDMI connection
Cable length: 3 m (using CSI-to-RJ45 conversion module) — Ethernet connection
Cable length: 5 m (using CSI-to-RJ45 conversion module) — Ethernet connection
Cable length: 10 m (using CSI-to-RJ45 conversion module) — Ethernet connection

[Note]
The AI Camera is not compatible with Ethernet connections.

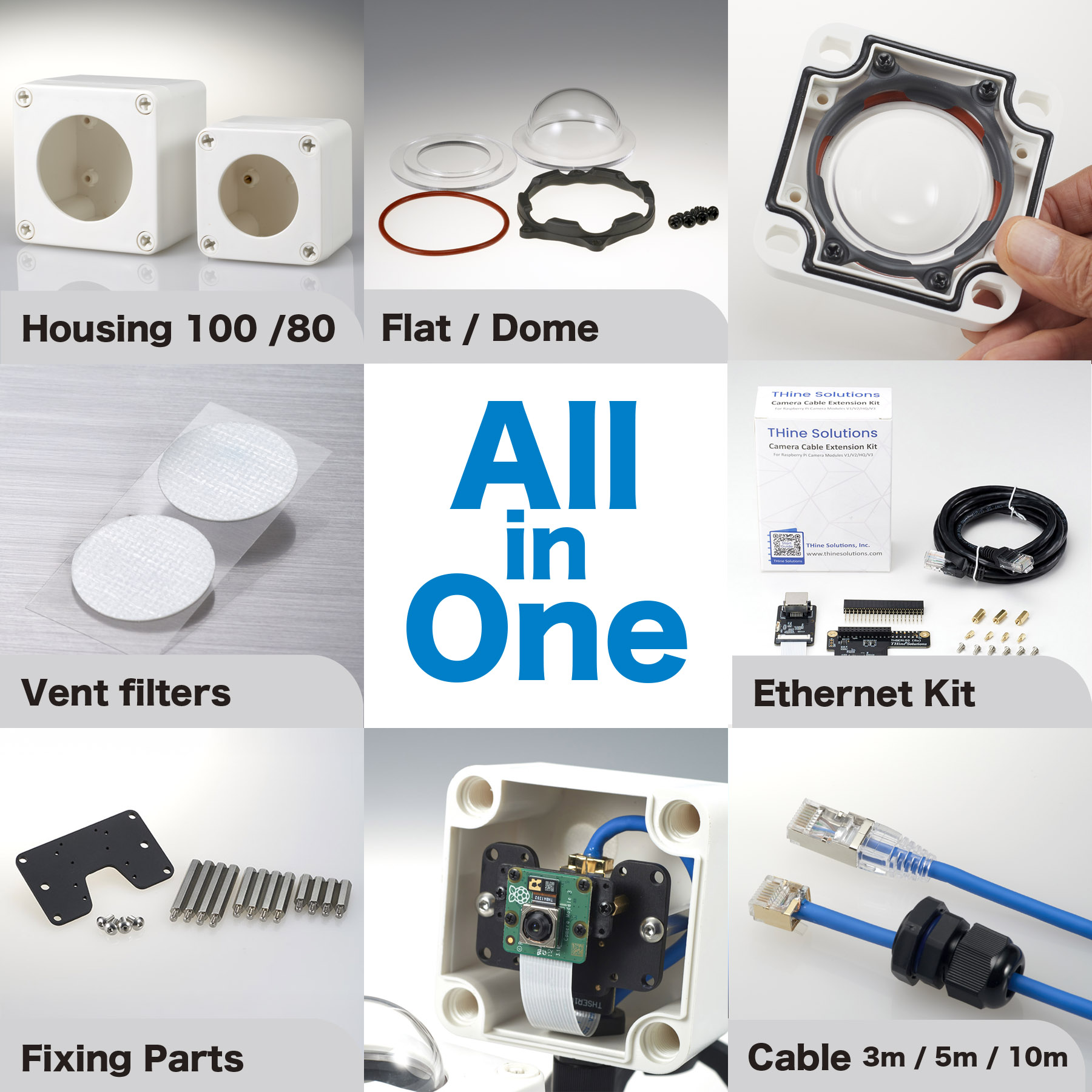

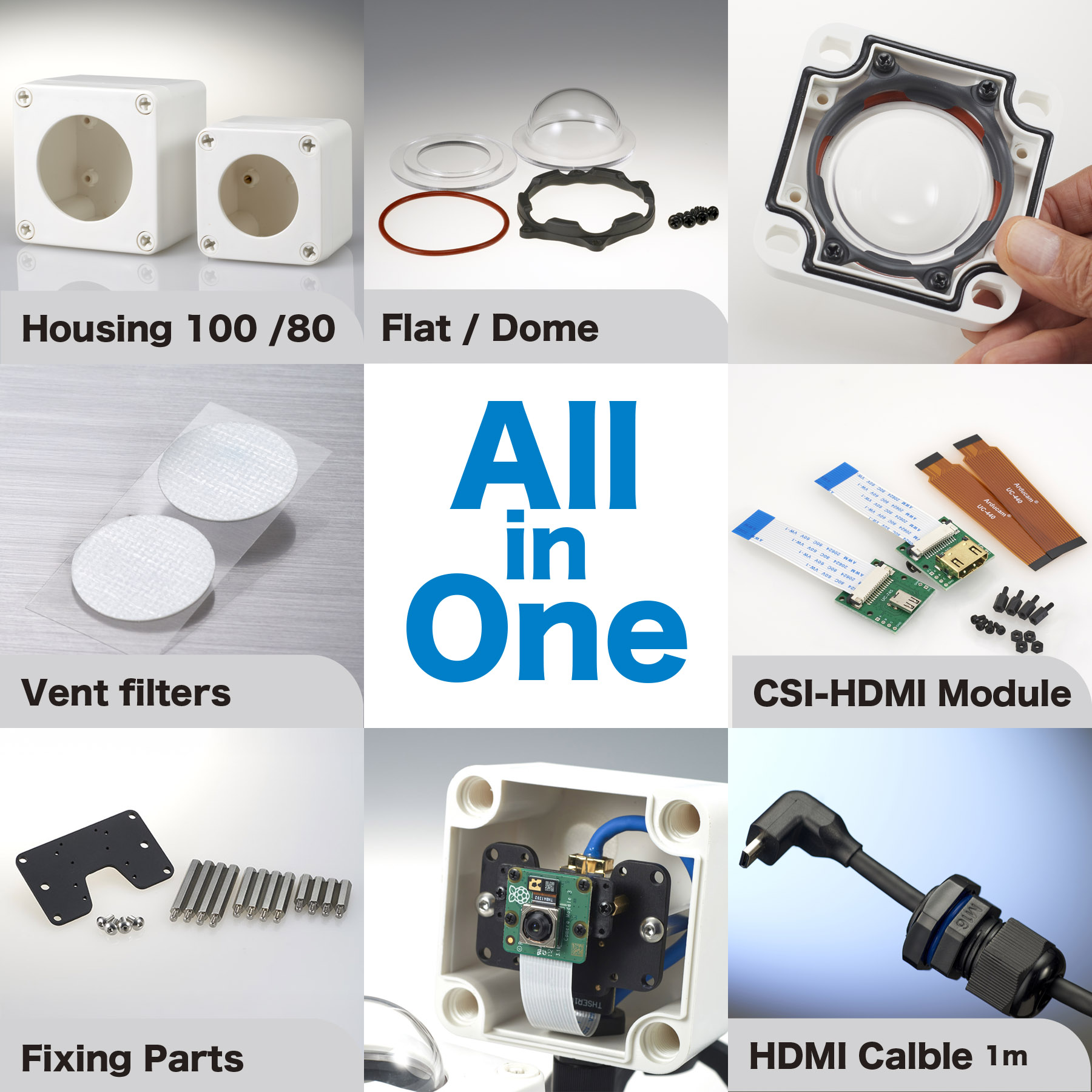

[Set Contents]

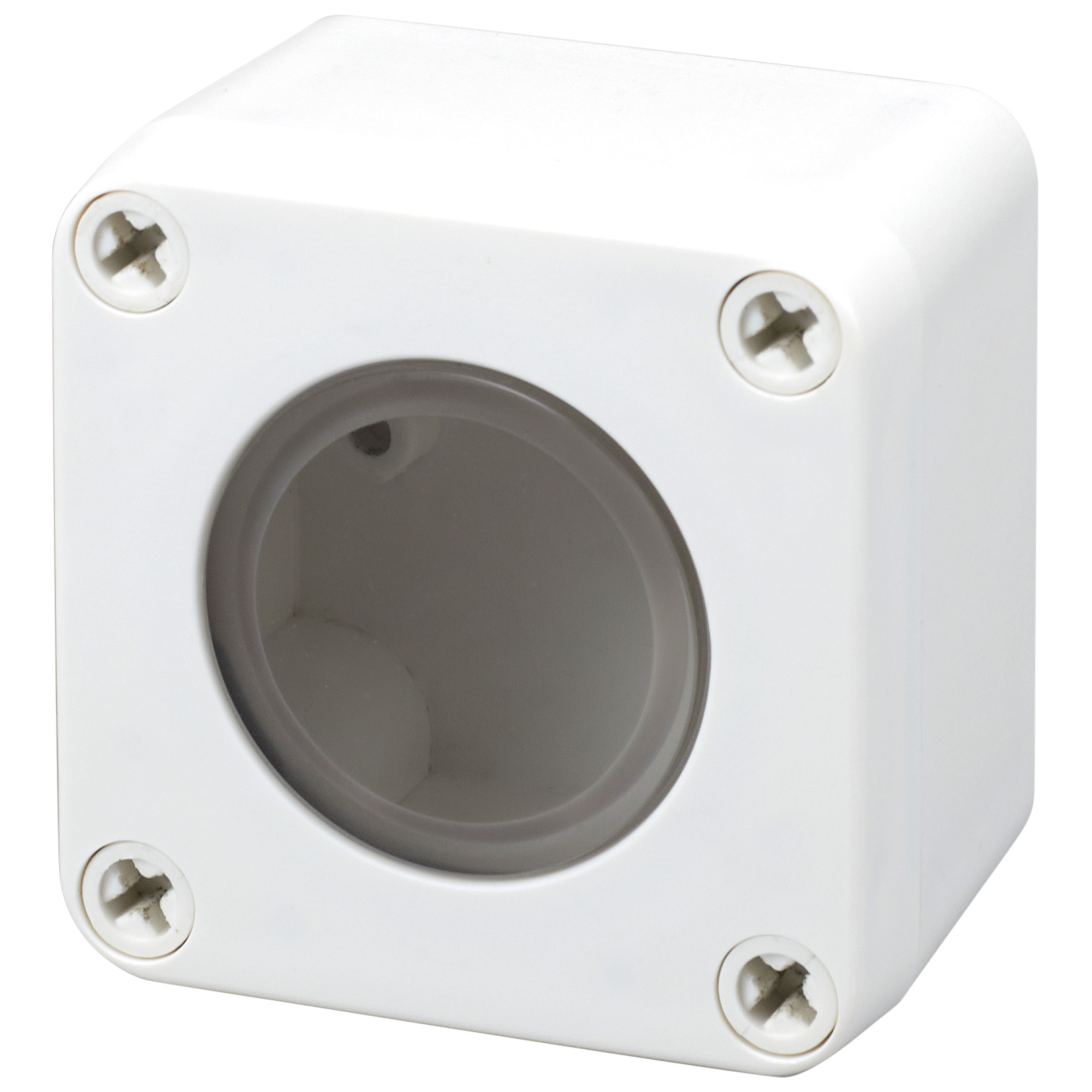

Housing case 80 (80 × 80 × 60 mm / flat window) or Housing case 100 (100 × 100 × 75 mm / flat window)
CSI conversion module
Cable with M16 cable gland
Mounting plate and spacers
2 vent filter seals (Φ22.5 mm)
※ The camera itself is not included in this set.

[Model Numbers]
Side cable outlet
1 m: RP-80-FL-S-M16-HDM-100
3 m: RP-80-FL-S-M16-RJ45-300
5 m: RP-80-FL-S-M16-RJ45-500
10 m: RP-80-FL-S-M16-RJ45-1000

Rear cable outlet
1 m: RP-80-FL-B-M16-HDM-100
3 m: RP-80-FL-B-M16-RJ45-300
5 m: RP-80-FL-B-M16-RJ45-500
10 m: RP-80-FL-B-M16-RJ45-1000

Bottom cable outlet
1 m: RP-80-FL-U-M16-HDM-100
3 m: RP-80-FL-U-M16-RJ45-300
5 m: RP-80-FL-U-M16-RJ45-500
10 m: RP-80-FL-U-M16-RJ45-1000
